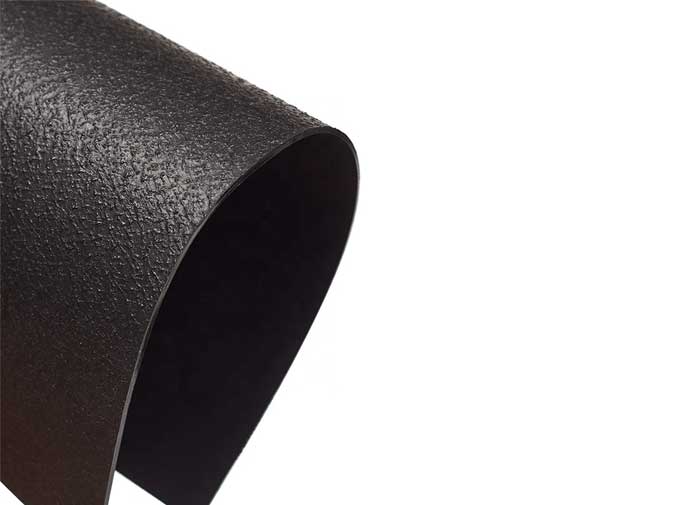

HDPE Textured Geomembrane

The textured HDPE geomembrane is a geotechnical impermeable material, processed by a special formula through roll extrusion or blown film roughening treatment. The textured surface allows for increased interface strength against soils, textiles, geosynthetic clay liners (GCLs) and other critical interfaces.The performance of the new material geomembrane is mainly isolation and impermeability. We have single-side textured and double-side textured geomembrane , both of them can increase the coefficient of friction with the contact surface and enhance the anti-slip function of the geomembrane. It is especially suitable for slopes, steep slopes and vertical seepage prevention, and improves engineering stability. The performance index of this product produced by our company is twice higher than that of ordinary rough surface geomembrane, which improves engineering stability.



Textured HDPE geomembrane has excellent chemical resistance, mechanical properties, environmental stress cracking resistance, dimensional stability, heat aging resistance, and UV radiation resistance, HDPE pillar-point rough surface geomembrane has a large friction coefficient and anti-skid effect, which is very suitable Laying on the four peripheral slopes or steep slopes and vertical anti-seepage of the waste landfill facilitates the secondary laying of geotextiles and at the same time enhances the resistance to deformation of the membrane. It is generally used in projects where the surface of the membrane body of the slope needs to be covered with soil and a large friction coefficient is required. It can also be applied to road and railway tunnel anti-seepage and drainage projects.




Product Specifications

Product Name:HDPE Textured Geomembrane

Thickness:0.2mm-2.5mm

Length :30m/roll ,50m/roll,100m/roll,150m/roll or follow your request

width:1m-8m or follow customers' demand

Surface:Both side smooth/both side textured;one side textured one side smooth, or as your request

Color:White,Black,Green,Blue,mainly black

Material:HDPE,LDPE,LLDPE

Certification:ISO9001:2015 / ISO14001:2015 /  ISO45001:2018

Standard:ASTM GRI-GM13


JIMU smooth Geomembrane Technical Data

Thickness (mm)

0.75mm

1mm

1.25mm

1.5mm

2mm

2.5mm

3mm

Density g/cm3

≥0.940

≥0.940

≥0.940

≥0.940

≥0.940

≥0.940

≥0.940

Asperity Height

≥0.25

Tensile yield strength (N/mm)

≥11

≥15

≥18

≥22

≥29

≥37

≥44

Tensile breaking strength (N/mm)

≥8

≥10

≥13

≥16

≥21

≥26

≥32

Bongation at yield(%)

≥12

Elongation at break(%)

≥100

Tear resistance(N)

≥93

≥125

≥160

≥190

≥250

≥315

≥375

Puncture strength(N)

≥200

≥270

≥335

≥400

≥535

≥670

≥800

Tensile load stress cracking

≥300

Carbon black content(%)

2.0-3.0

Carbon black dispersion

9 out of 10 observation areas should belong to the 1st or 2nd level,  the 3rd level should not be more than once.

OIT Oxidation induction time

Standard OIT/min -- 100, High presure OIT/min-- 400

85 ℃ Oven aging (minimum average value)

After 90days , Standard OIT retains 55% , High presure OIT retains 80%

UV resistance

After 1600h  ultraviolet radiation, Standard 0IT retains 50%

After 1600h  ultraviolet radiation, High Presure 0IT retains 50%

.-7℃ Low temperature impact embrittlement performance

Test passed

Water vapor permeability coefficient gcmcm sPa)2

≤1.0*10-13

Dimensional stability  %

±2


Application

1.Landfill capping

2.Tank liner

3.Power plant wastewater treatment

4.mining,

5.retaining backfill

6.waste containment.

7.Fish and shrimp pond liner


Features

Single- or double-sided textured surface.

Increased frictional coefficient for steep slopes.

Ultraviolet and chemical resistance.

Excellent UV environmental stress crack resistance.

High tensile strength and low elongation.

High friction coefficient and tensile strength with Geotextile reinforcement performance.

Excellent water permeability, corrosion and aging resistance.

Impermeable, antifouling, antiskid function.

Advanced stabilization for isolation, filter, drainage, protection, stability, strengthen and other functions.

Light weight, easy construction and good overall continuity.
