LLDPE GEOMEMBRANE-Sichuan Jimu New Technology Co.,Ltd

Product Specifications

LLDPE geomembrane is non-toxic, tasteless, and odorless, with a density between 0.915 and 0.935g/cm3. It is ethylene and a small number of high-grade α-olefins (such as Butene-1, Hexene-1, Octene-1, Tetramethylpentene) -1, etc.) A copolymer is formed by high-pressure or low-pressure polymerization under the action of a catalyst. The molecular structure of conventional LLDPE Geomembrane is characterized by its linear main chain, with only a few or no long branches, but contains some short branches. The absence of long-chain branches makes the polymer more crystalline.

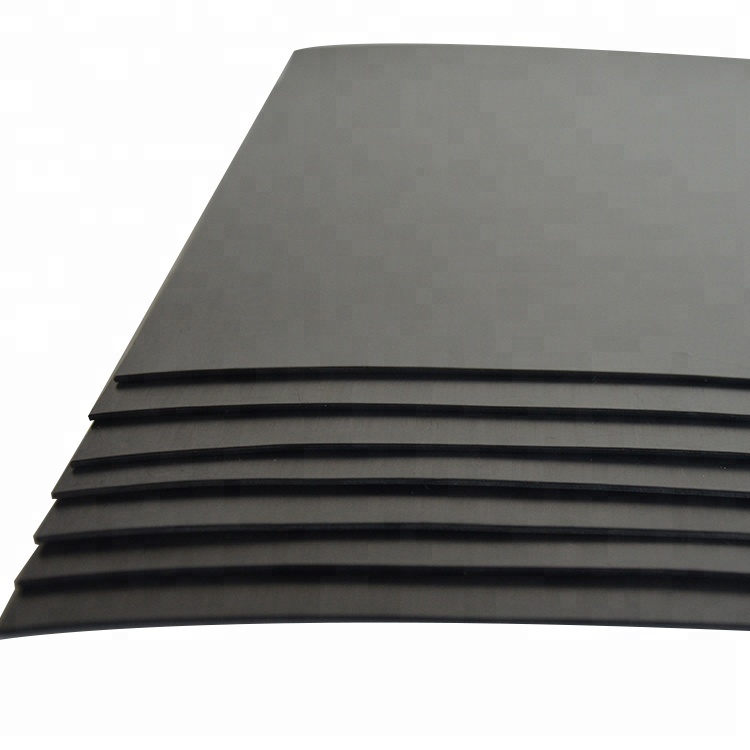

LLDPE Geomembrane

Thickness: 0.2mm-2.5mm

Length : 30m/roll ,50m/roll,100m/roll,150m/roll or follow your request

width: 1m-8m or follow customers' demand

Surface: Smooth

Color: White,Black,Green,Blue,mainly black -customizable

Material: 100% Virgin LLDPE

Certification: ISO9001:2015 / ISO14001:2015 / ISO45001:2018

Standard: ASTM GRI-GM13

JIMU smooth Geomembrane Technical Data

Specification :

S/N	Item	Index
	Thickness mm	0.75	1	1.25	1.5	2	2.5	3
1	Density g/cm3	≤0.939
2	Breaking strength (stress) (N/mm) N/mm	≥20	≥27	≥33	≥40	≥53	≥66	≥80
3	Nominal strain at break	800
4	2% secant modulus N/mm	370	420	520	630	840	1050	1260
5	Right-angle tear resistance N	70	100	120	150	200	250	300
6	Puncture Resistance N	190	250	310	370	500	620	750
7	Multiaxial tensile strain at break %	30
8	Resistance to environmental stress cracking	1500
9	Carbon black content %	2.0~3.0
10	Carbon black dispersion	The number of Level 3 among 10 data is not more than one; Level 4 and Level 5 are not allowed.
11	Dimensional stability	±2
12*	Oxidation induction time (OIT) min	Oxidation induction time under normal pressure ≥100
		Oxidation induction time under disjoining pressure ≥400
13	85°C thermal aging (retention rate of OIT under normal pressure after 90d) %	≥35
14	Ultraviolet resistance (retention rate of OIT after 1600h ultraviolet irradiation) %	≥35
Note: Technical performance index of thickness specification not listed in the table shall be implemented according to the interpolation method.
For two indexes of Item 12 and Item 14, select one from the retention rate of OIT under normal pressure and the retention rate of OIT under high pressure and carry out the test.
